Step types

A definition has seven flow-control step types — model, media, three_d, http, sub_pipeline, foreach and parallel — plus one step type per capability (image.resize, video.trim, web.search, …). The two containers have their own page. A step type that is neither is refused with unsupported_step_type, wherever it sits in the tree.

The palette

Add a node on the canvas is the visual index of everything on this page. The groups below are the palette’s own. Where a palette name and a JSON type differ, the palette speaks product and the JSON speaks wire — both are named here so you can move between them.

Inputs

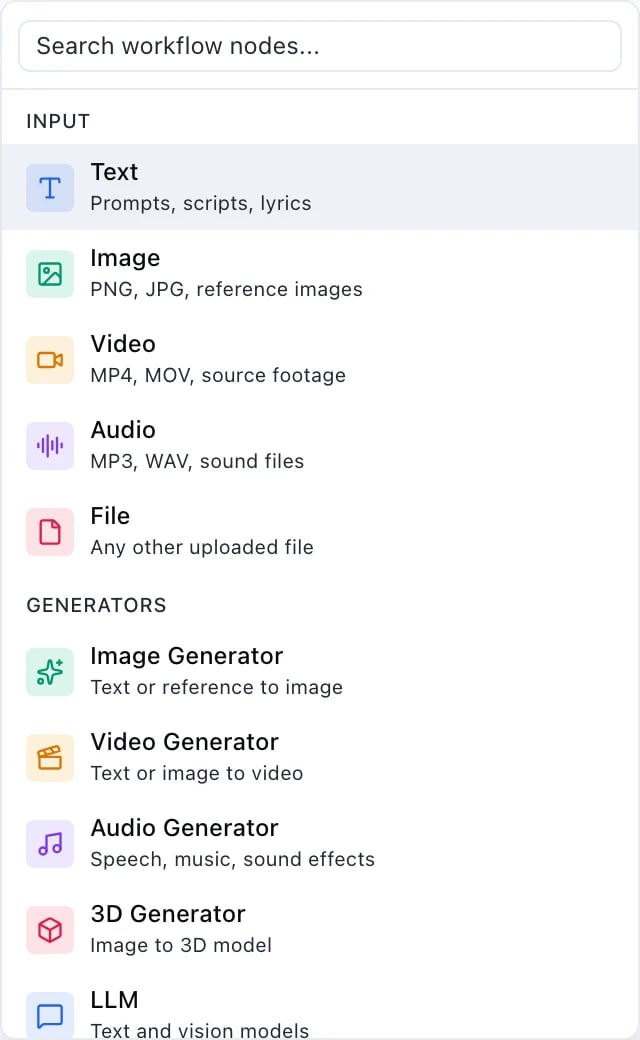

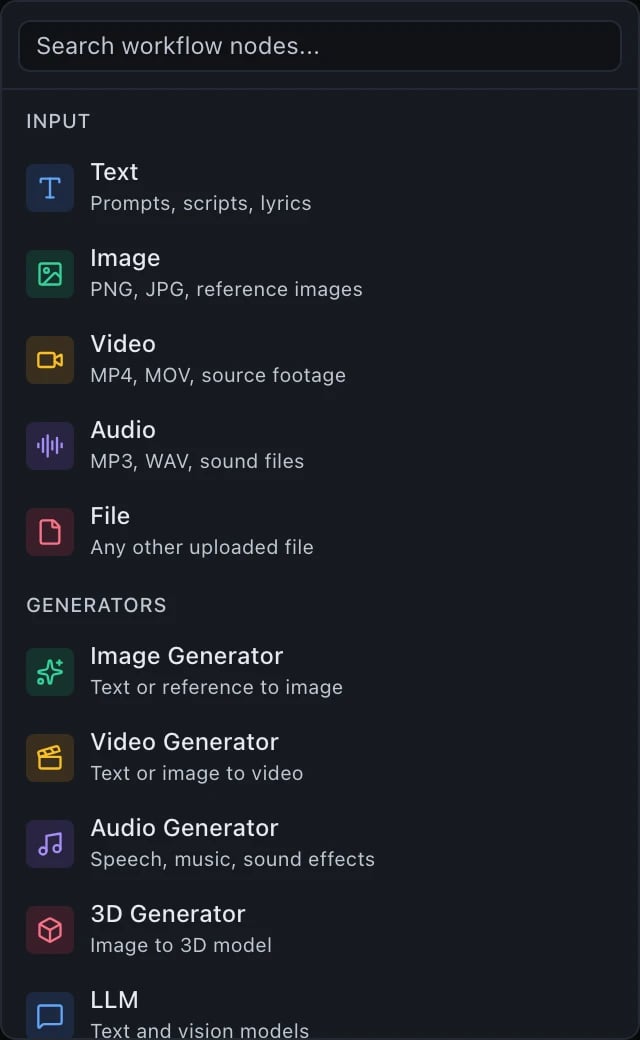

A palette group headed INPUT with five entries: Text, for prompts, scripts and lyrics; Image, PNG, JPG and reference images; Video, MP4, MOV and source footage; Audio, MP3, WAV and sound files; and File, any other uploaded file. — The values a run supplies

These become the inputs declaration and the ${input.…} bindings that read it — see Declaring run inputs.

Generators

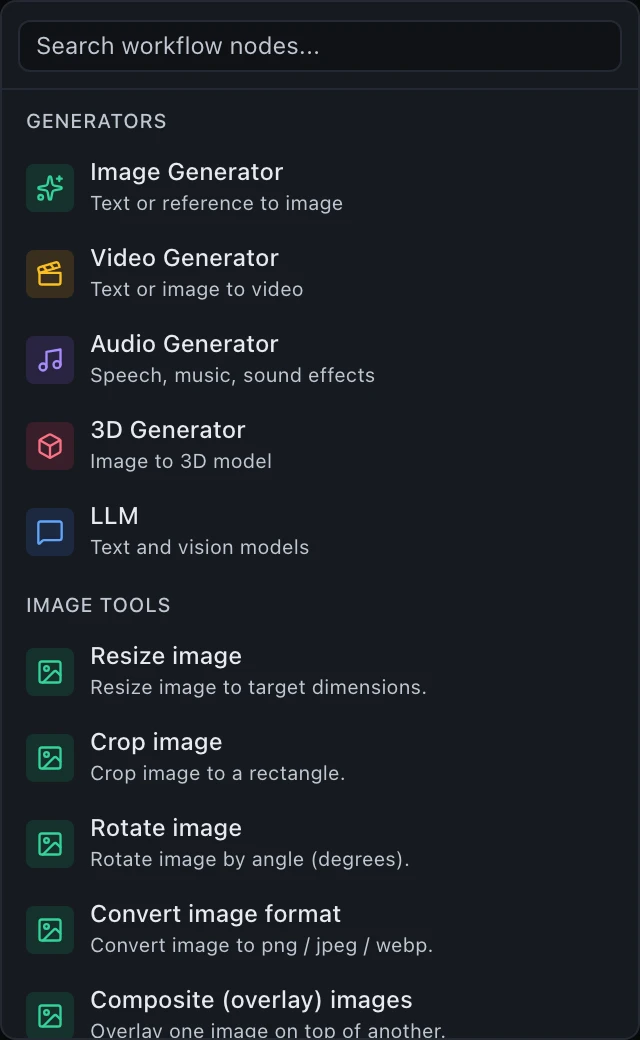

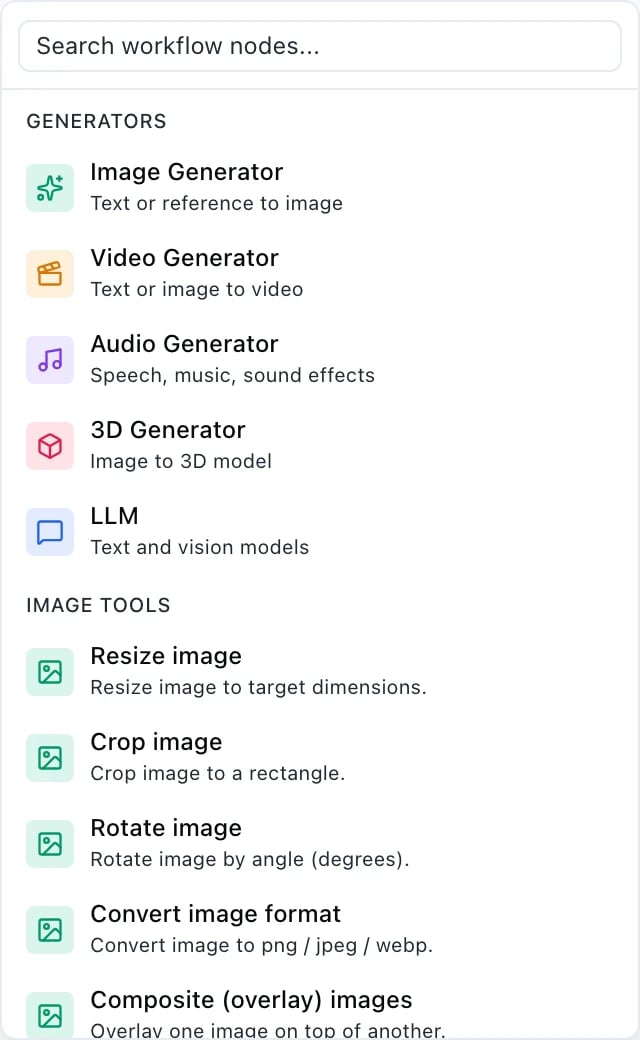

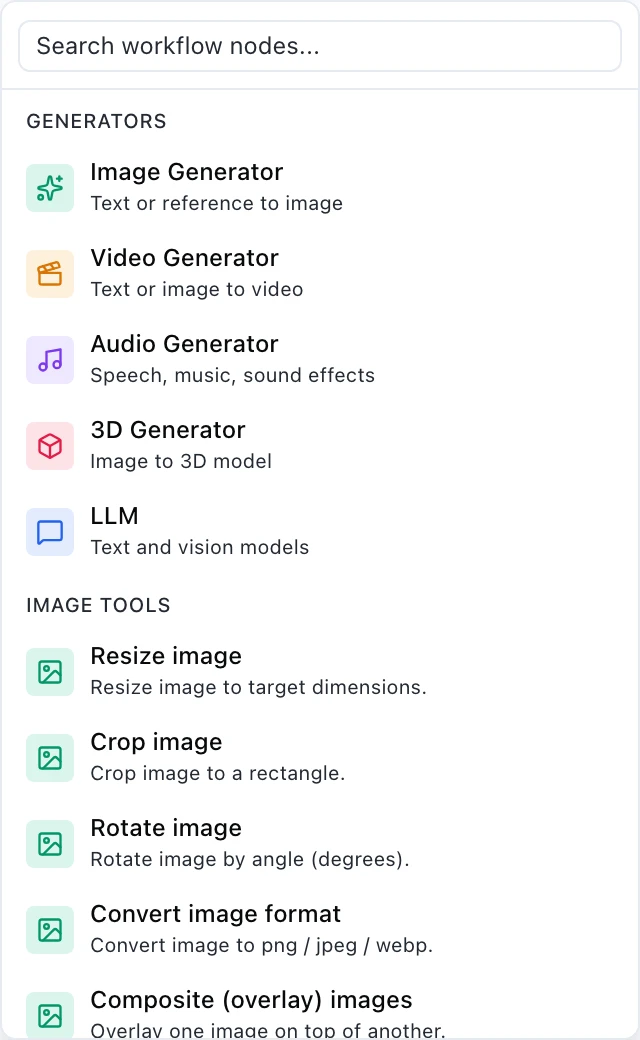

LLM is the model step. Image Generator, Video Generator and Audio Generator are media steps, one per modality. 3D Generator is its own step type, three_d — the 3D catalogue also holds models that take a mesh as input (rigging, remeshing, retexturing), a shape media’s prompt-plus- optional-image has no room for.

Media tools

Deterministic work on files: no model, no prompt, a fixed price — with one exception. Every entry but one is a capability step — image.resize, video.trim, audio.concat and so on. The exception is Transcribe, in the audio group below: it runs through a speech-to-text model, so it is a media step and priced like one, not a capability.

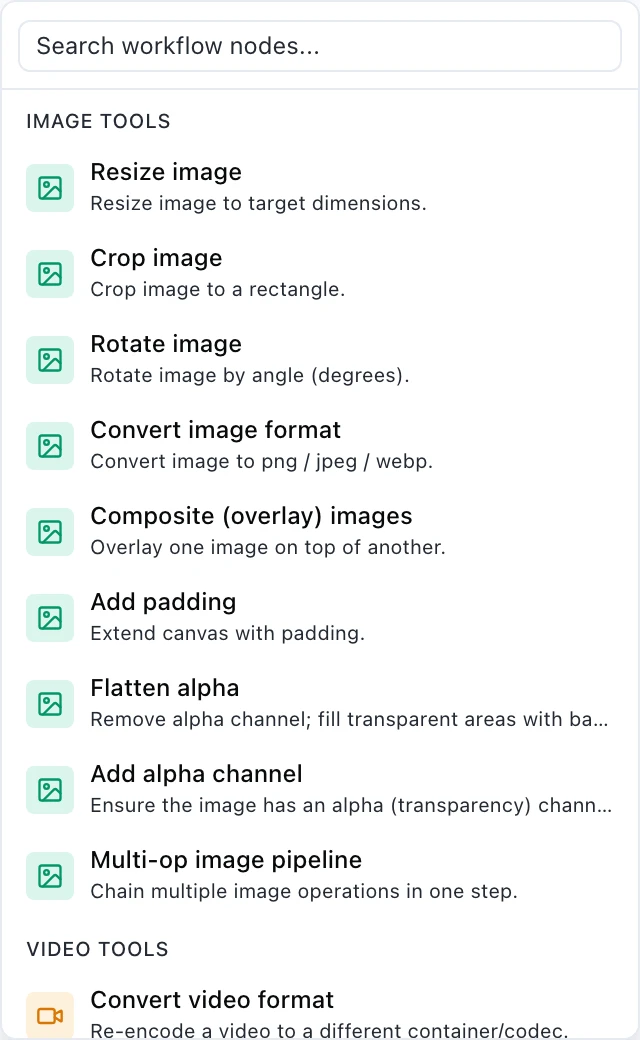

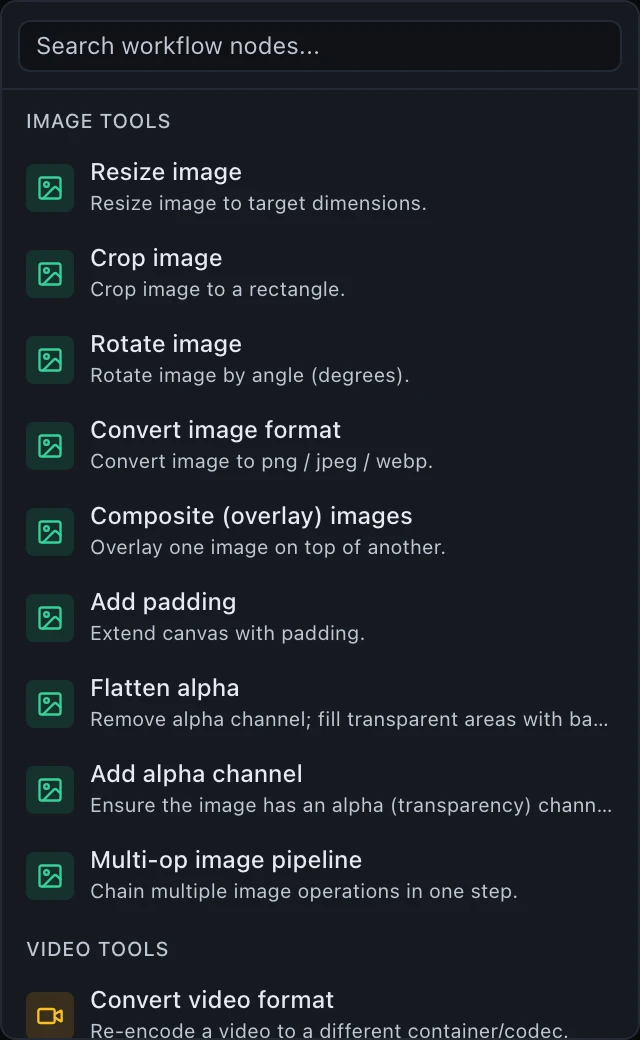

A palette group headed IMAGE TOOLS listing nine entries: Resize image, Crop image, Rotate image, Convert image format, Composite (overlay) images, Add padding, Flatten alpha, Add alpha channel, and Multi-op image pipeline, which chains multiple image operations in one step. — Image tools

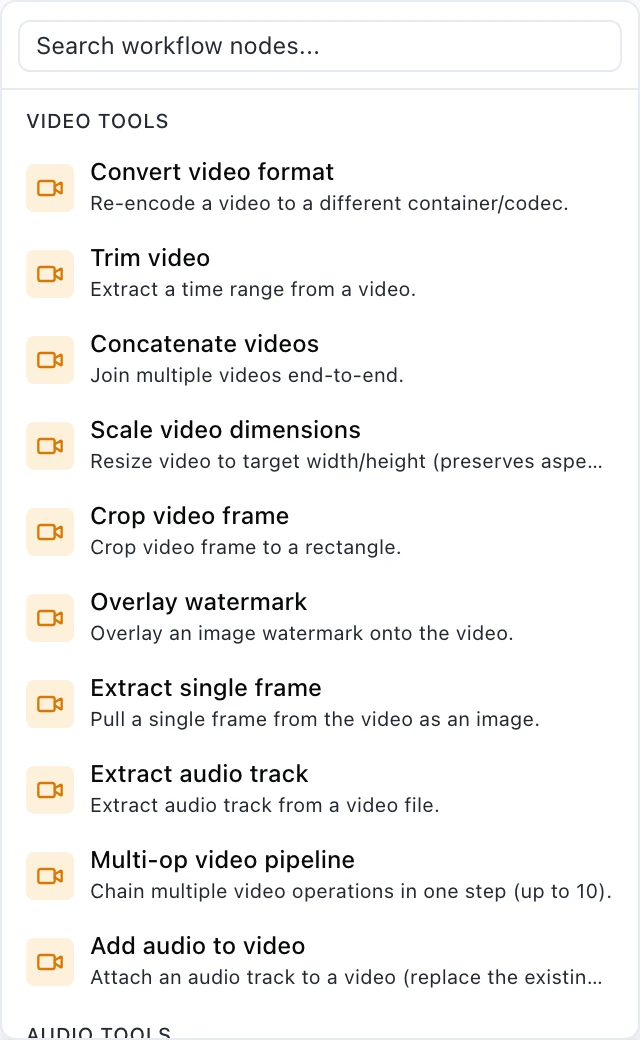

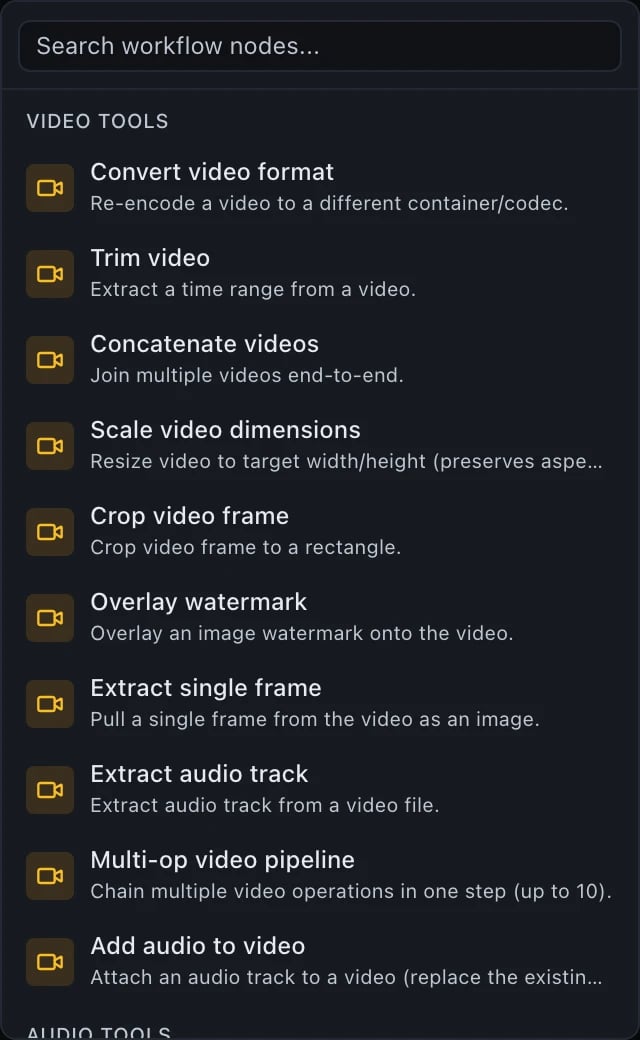

A palette group headed VIDEO TOOLS listing ten entries: Convert video format, Trim video, Concatenate videos, Scale video dimensions, Crop video frame, Overlay watermark, Extract single frame, Extract audio track, Multi-op video pipeline chaining up to ten operations, and Add audio to video. — Video tools

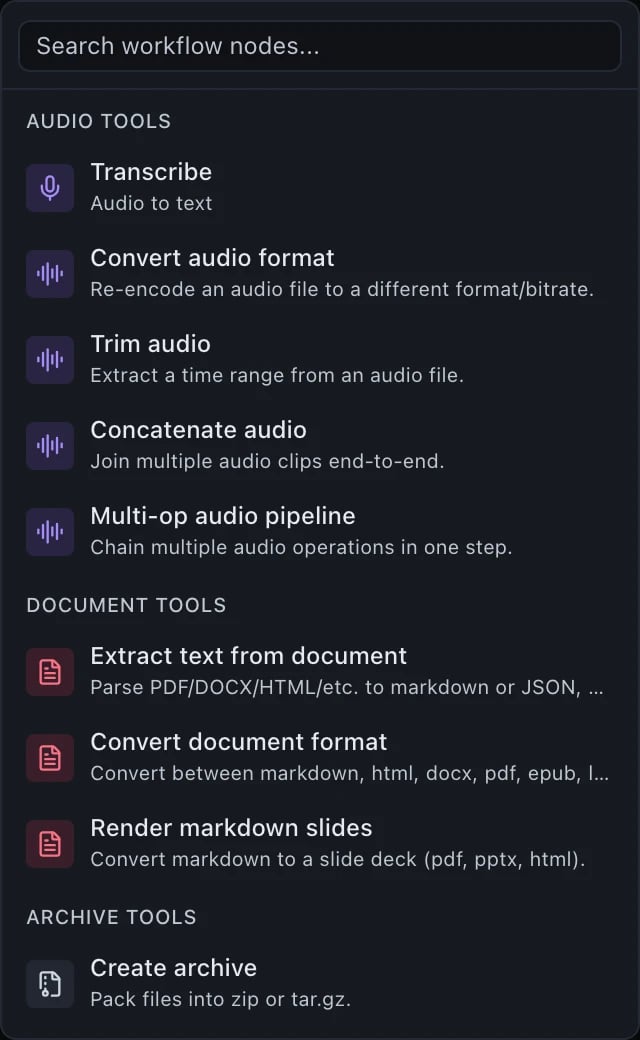

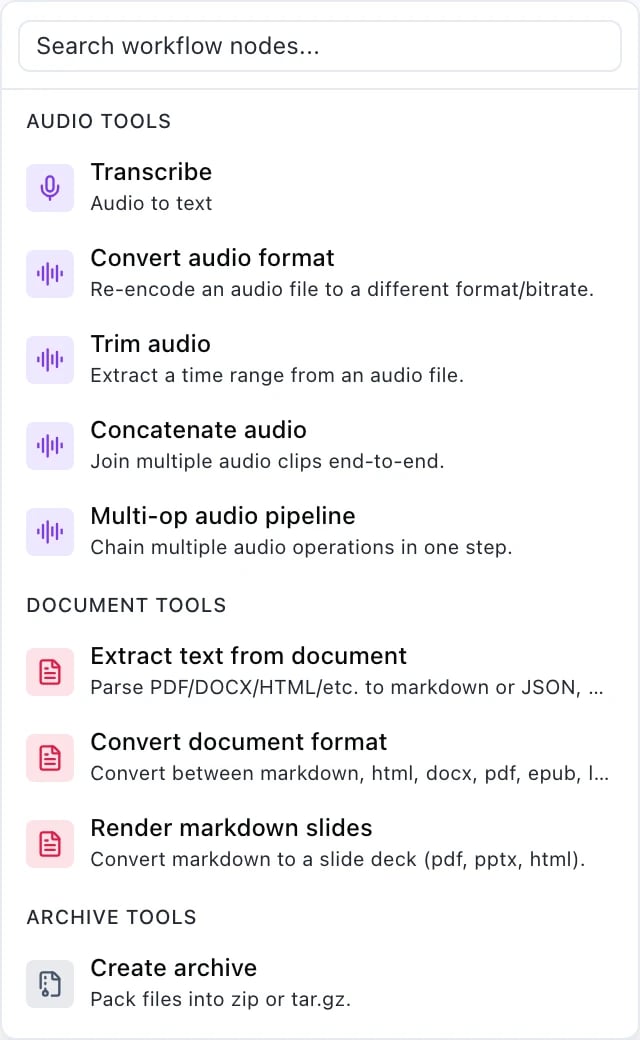

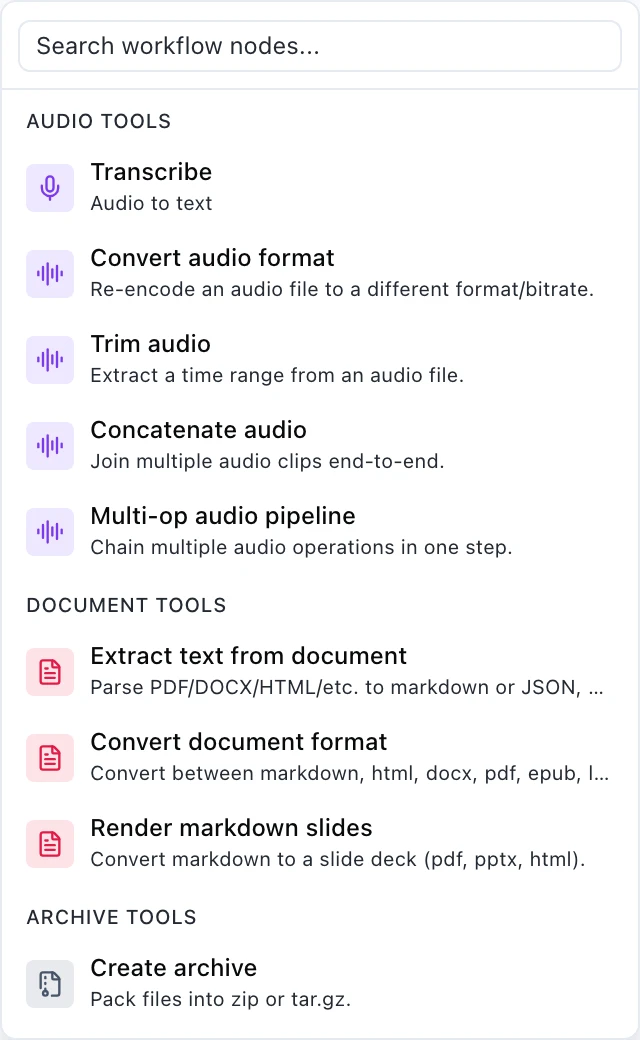

A palette group headed AUDIO TOOLS listing five entries: Transcribe, audio to text; Convert audio format; Trim audio; Concatenate audio; and Multi-op audio pipeline. — Audio tools

The Multi-op entry in each group is the one to reach for when you would otherwise chain three steps that each re-fetch and re-store the same file: it runs the operations in order inside one step. In JSON it is image.pipeline, video.pipeline, audio.pipeline — one of the few places the older noun survives, because it names an operation rather than a workflow.

Documents, archives, the web and code

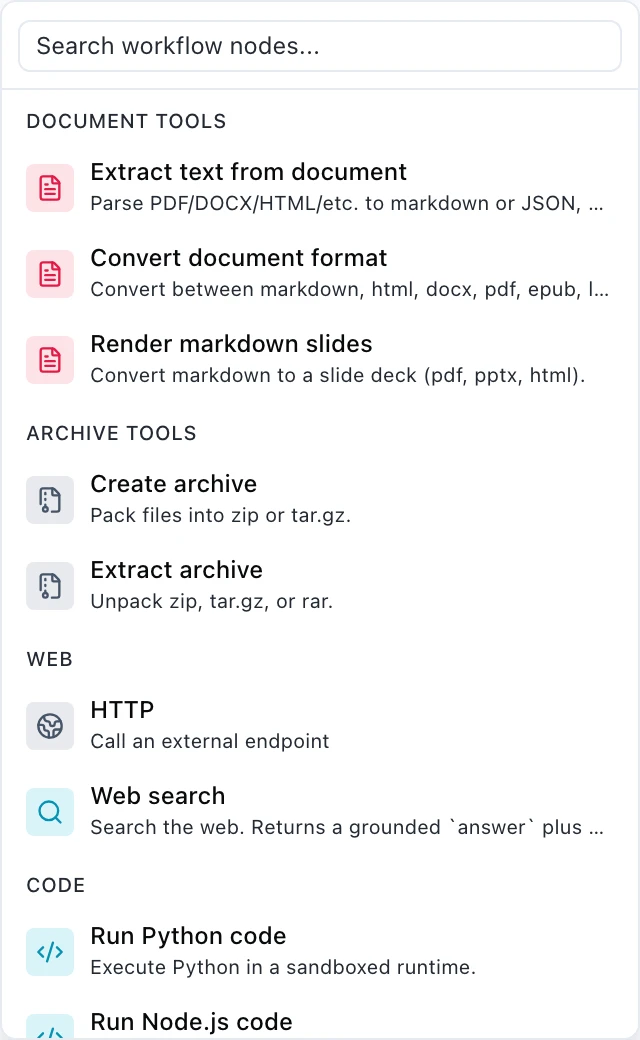

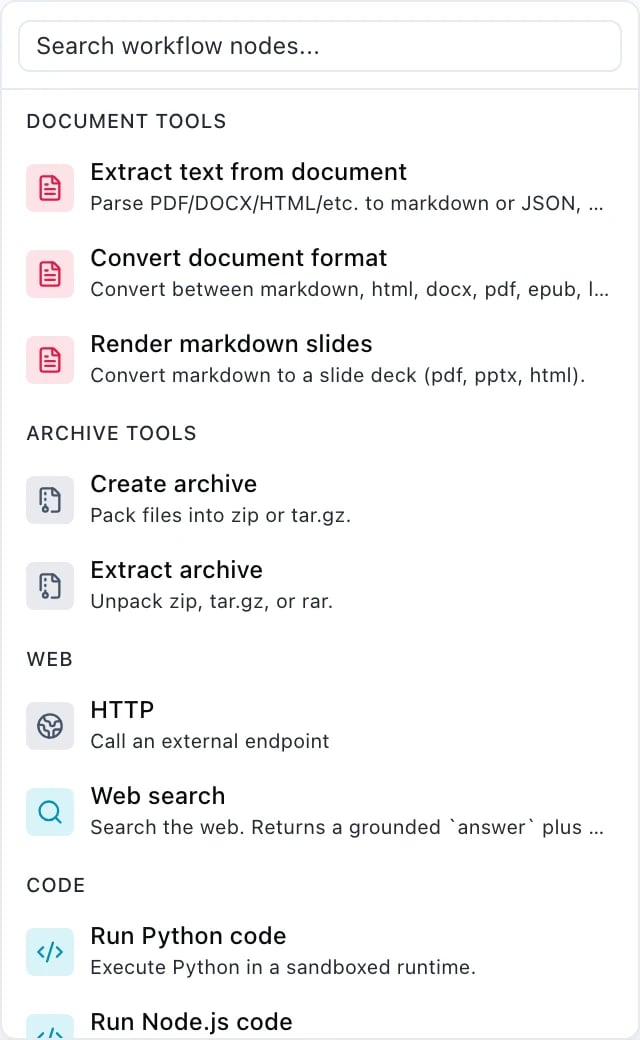

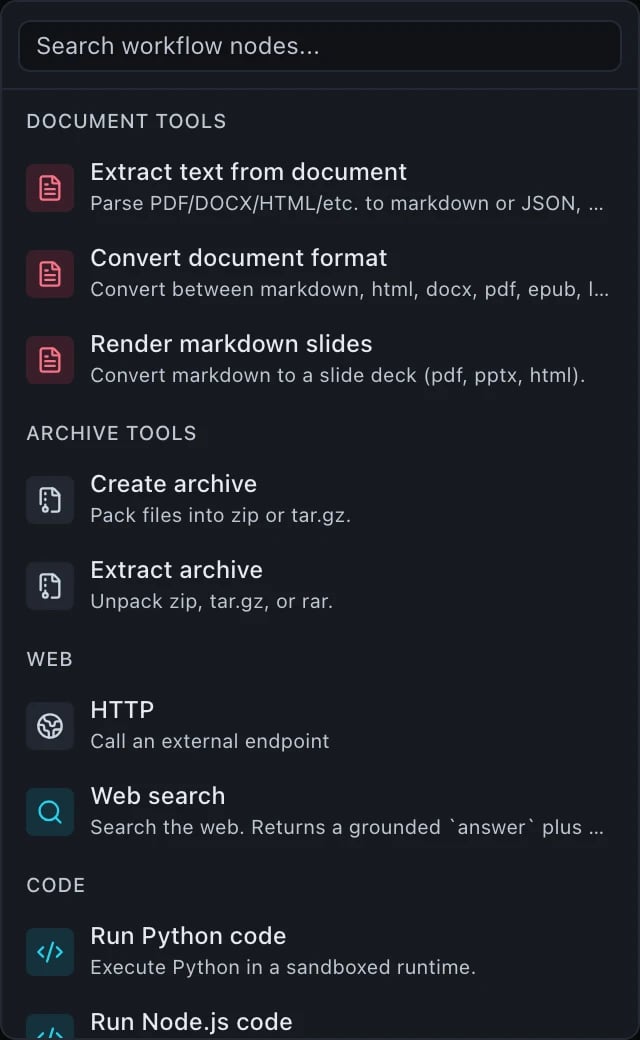

A palette group headed DOCUMENT TOOLS with three entries: Extract text from document, parsing PDF, DOCX, HTML and others to markdown or JSON; Convert document format, between markdown, html, docx, pdf, epub and latex; and Render markdown slides, converting markdown to a slide deck as pdf, pptx or html. — Document tools

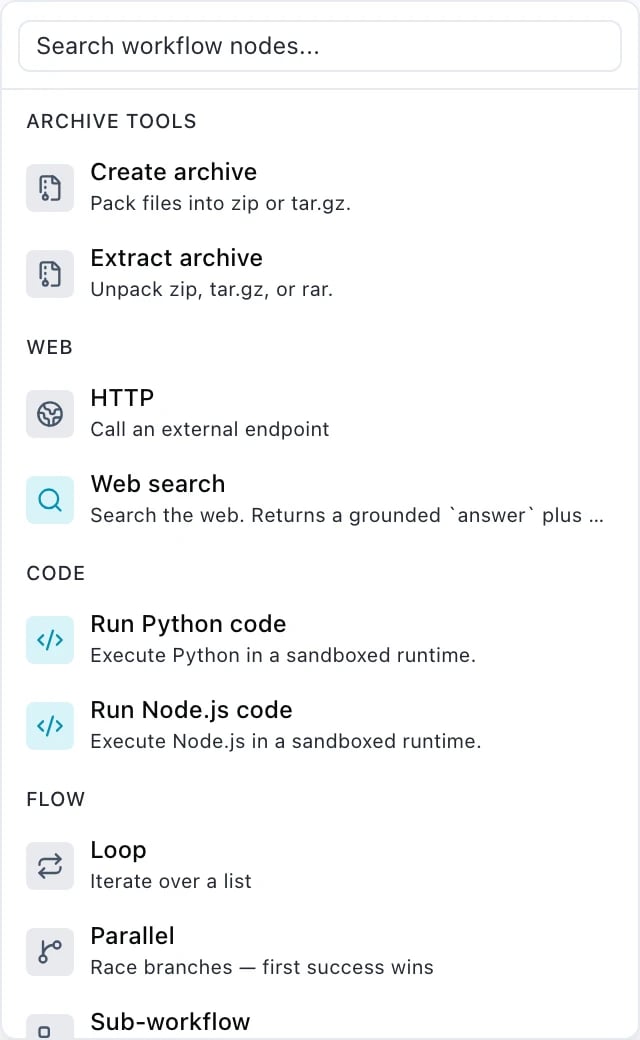

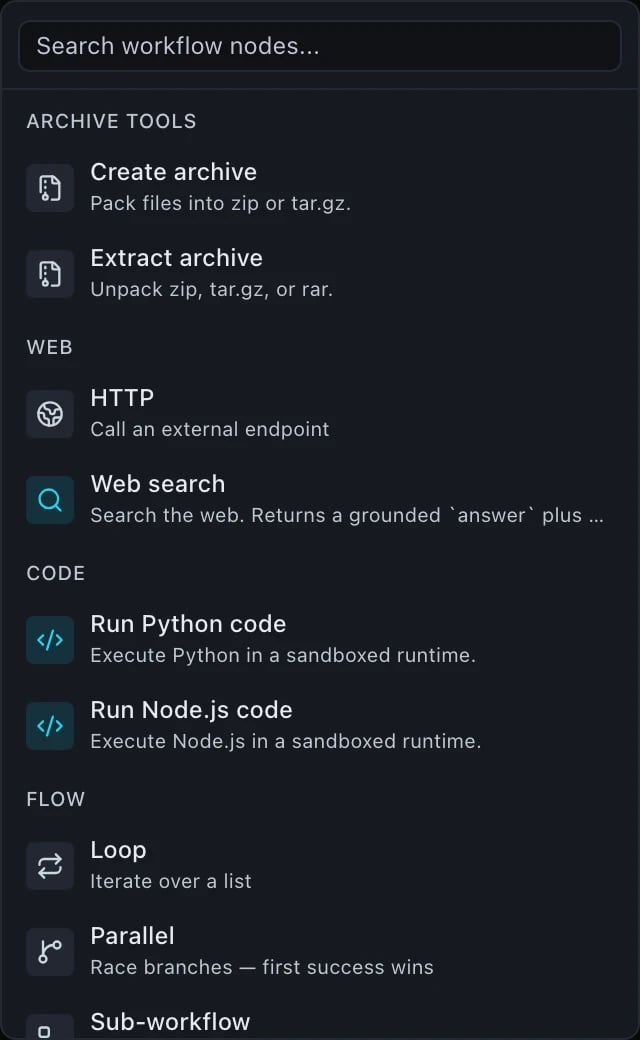

A palette group headed ARCHIVE TOOLS with two entries: Create archive, packing files into zip or tar.gz; and Extract archive, unpacking zip, tar.gz or rar. — Archive tools

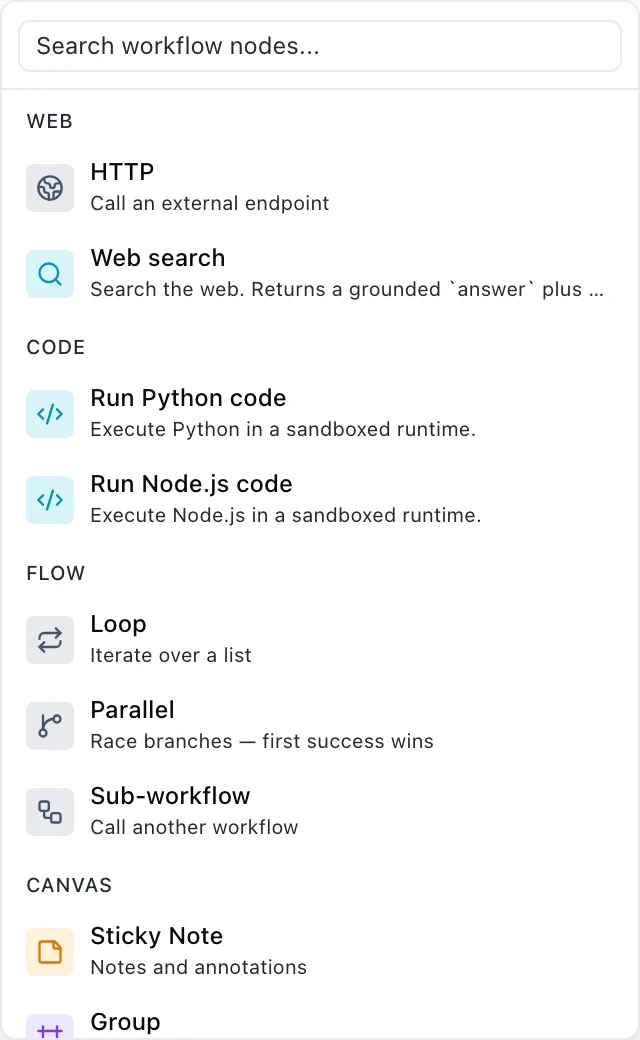

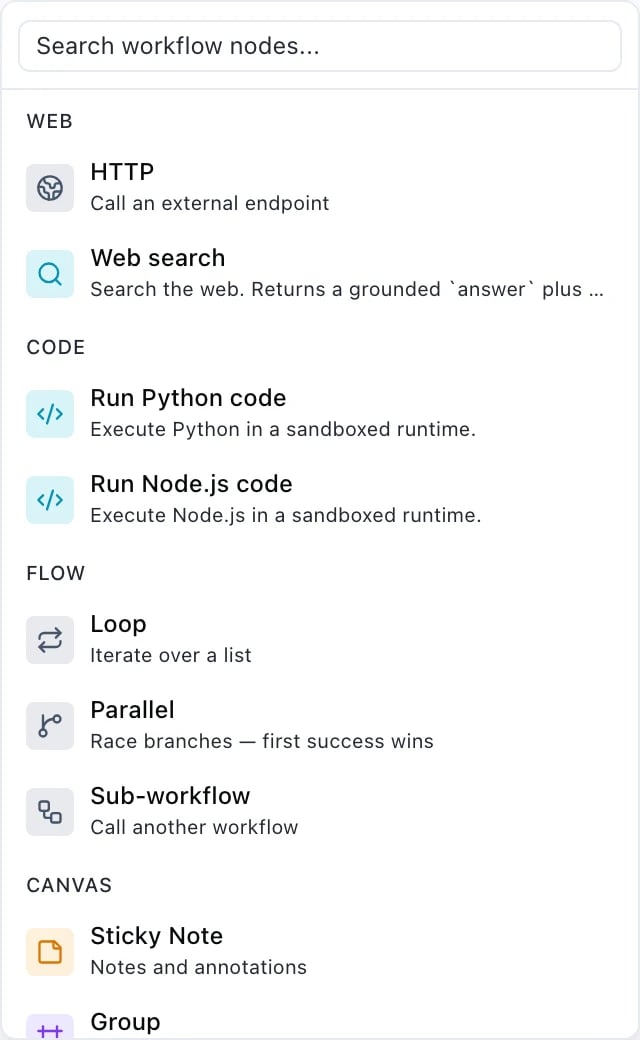

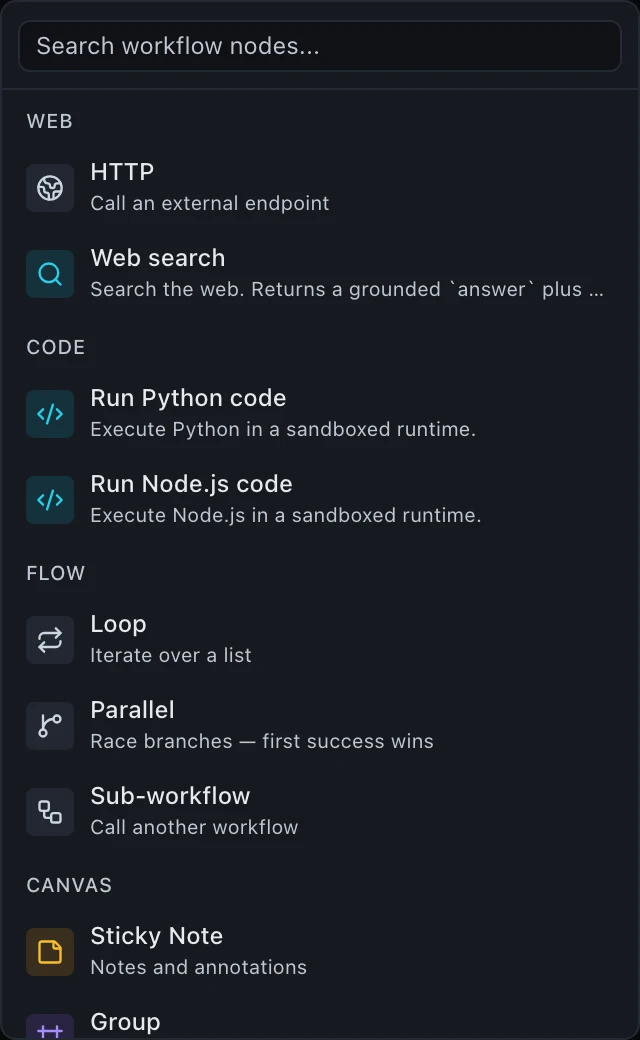

A palette group headed WEB with two entries: HTTP, call an external endpoint; and Web search, which returns a grounded answer plus more. — Web

HTTP is the http step and is the one to read the limits on before you rely on it.

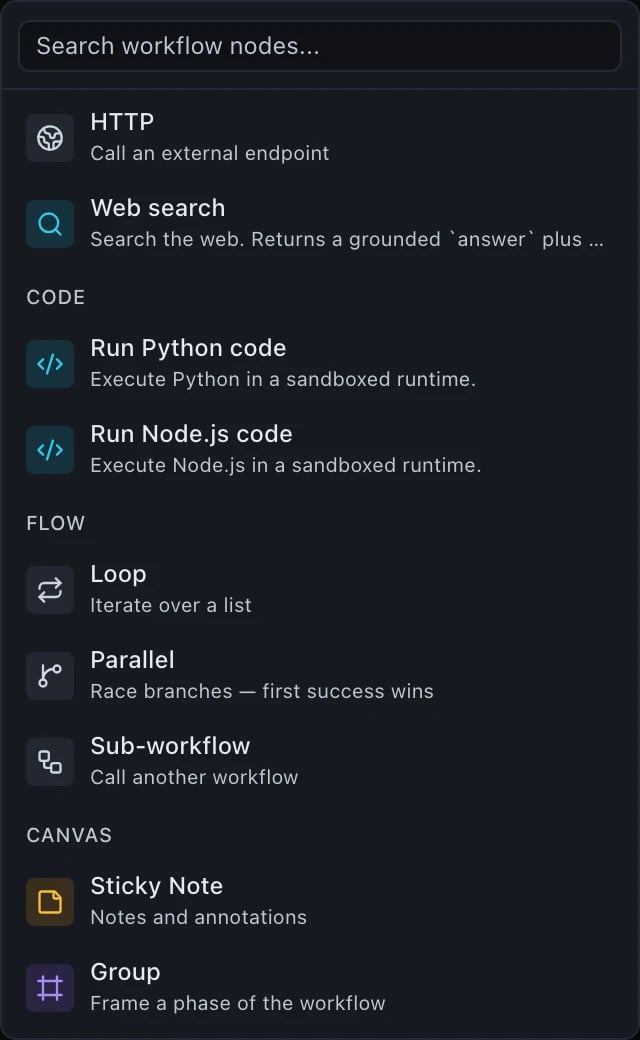

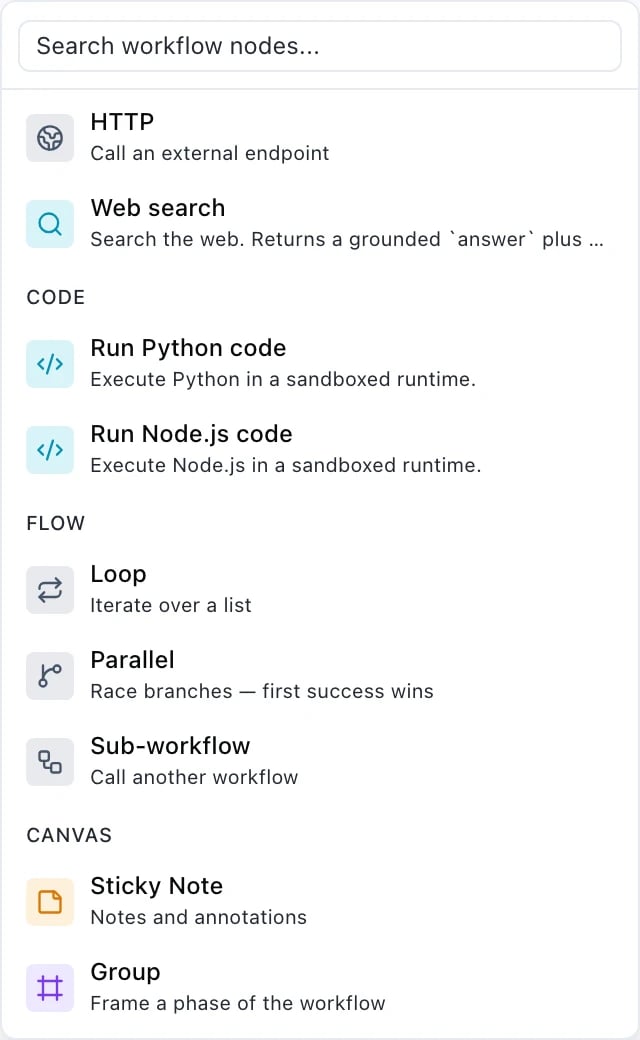

A palette group headed CODE with two entries: Run Python code and Run Node.js code, each executing in a sandboxed runtime. — Code

Flow

Read the second one carefully. Parallel is a race — its branches are alternatives and the first success wins, which is not the same as “run these at the same time”. Independent steps already run concurrently without it. See Containers for both. Loop is foreach. Sub-workflow is sub_pipeline — the one type whose JSON name still carries the old noun.

Canvas

These two do nothing at run time. They are stored under the definition’s presentational ui section alongside node positions, so they travel with the workflow and are ignored by the runner. Use them freely — a sticky note cannot change what a workflow does.

Fields every step shares

Field	Type	Notes
`id`	string	Required. 1–120 characters, `A–Z a–z 0–9 _ -` only. Unique across the whole definition.
`condition`	object	The step runs only if the expression is true. See below. Top-level steps only — a `condition` on a step inside a container body is refused.
`retry`	object	Step-level retry policy. See below.
`timeout_seconds`	integer	1–600. The longest one attempt of the step may take.

timeout_seconds has no schema default. Each executor supplies its own fallback, and the http step overrides the field entirely with a tighter cap of its own (see below).

`condition`

A condition is evaluated before the step is dispatched. If it is false the step is marked skipped with skippedReason: "condition_false", publishes null, and costs nothing.

{
  "id": "translate",
  "type": "model",
  "model": "gpt-5",
  "condition": { "left": "${input.language}", "op": "neq", "right": "en" },
  "input": { "messages": [{ "role": "user", "content": "…" }] }
}

A clause is {left, op, right}, or {left, op} for the two unary operators. Operands may be strings, numbers, booleans, null or arrays of scalars, and a string operand is resolved as a binding first.

`op`	Requires
`truthy`, `falsy`	unary — no `right`
`eq`, `neq`	anything (strict equality)
`gt`, `gte`, `lt`, `lte`	both operands must be numbers
`in`, `not_in`	`right` must be an array
`contains`	`left` a string (then `right` must be a string), or `left` an array
`starts_with`, `ends_with`	both operands must be strings

Clauses combine with {"and": […]}, {"or": […]} and {"not": …}, nested up to 16 levels deep. An operand of the wrong type is not a validation error — it fails the step at run time with invalid_condition, because the value only exists once bindings have resolved.

`retry`

Available on a step and on the definition as a whole. The step-level block gets first crack; the workflow-level block is the outer fallback.

Field	Notes
`max_attempts`	1–5.
`backoff`	`fixed` (5 s) or `exponential` (2ⁿ seconds, ±25 % jitter, capped at 60 s).
`retryable_errors`	Up to 20 error codes, each up to 80 characters. Omit it to take the default list.

The default retryable list is execution_timeout, input_fetch_failed, archive_failed, worker_unavailable, worker_timeout, worker_stalled. Some codes are never retried, whatever you list: invalid_pipeline_definition, invalid_input, invalid_request, invalid_pipeline_input, unsafe_entry_path, compression_bomb, entry_too_large, output_too_large, input_too_large, unsupported_format, entries_limit_exceeded, runtime_error, output_parse_failed, unsupported_language, unauthorized, forbidden, no_wallet, insufficient_credits and rate_limited. Retrying cannot change any of them, and each attempt would bill again.

`model`

A chat completion. input is the same body you would send to POST /v1/chat/completions, minus model, which is the step’s own field.

{
  "id": "summary",
  "type": "model",
  "model": "gpt-5",
  "input": {
    "messages": [
      { "role": "system", "content": "You summarise in one paragraph." },
      { "role": "user", "content": "${steps.fetch.output.body}" }
    ]
  }
}

Output: the provider’s OpenAI-shaped chat.completion object, verbatim. The text is at ${steps.summary.output.choices.0.message.content}. The step output does not depend on whether the run was streamed — a streamed run assembles the same object from the chunks. Fields the provider never sent are omitted, not invented, so a binding to one resolves to undefined.

`media`

Image, video, audio or transcription generation. input depends on the model’s modality — prompt, size, n, a reference image, and so on.

{
  "id": "hero",
  "type": "media",
  "model": "gpt-image-2",
  "input": { "prompt": "A minimalist logo mark for ${input.brand}" }
}

Output: { "url": "/v1/files/<id>/content", "file_id": "…", "modality": "image", "provider": "…" }, plus an artifact handle beside it. Chain it with ${steps.hero.outputRef} — see Bindings for why output.url is not the right spelling for a downstream step. Transcription is the one modality that publishes no artifact handle; its deliverable is ${steps.<id>.output.text}.

`three_d`

Generates or transforms a mesh — text-to-3D, image-to-3D, or mesh-in for rigging, remeshing and retexturing. A step of its own rather than a widened media: the 3D catalogue includes models that take a mesh as input, a shape media’s prompt plus an optional conditioning image has no room for.

{
  "id": "figurine",
  "type": "three_d",
  "model": "meshy-text-to-3d",
  "input": { "prompt": "A low-poly fox, game-ready" }
}

input needs at least one of prompt, image_url or mesh_url — which ones a given model accepts depends on the model: text-to-3D takes a prompt, image-to-3D an image, and rigging or retexturing an existing mesh. seed is optional. model must be an object_3d-modality model, refused with model_not_object_3d otherwise; a missing prompt/image_url/mesh_url is refused with object_3d_input_required, before any credit hold is taken. Output: { "url": …, "file_id": …, "modality": "object_3d", "content_type": …, "provider": … }, plus an artifact handle — chain a following step’s mesh_url input to ${steps.<id>.outputRef}, the same convention media uses.

Capability steps

Any of the 31 capabilities is a step type in its own right. Fetch the full list, with JSON Schema for input and params, from GET /v1/tools.

{
  "id": "badge",
  "type": "image.resize",
  "input": { "image_url": "${steps.hero.outputRef}" },
  "params": { "width": 200, "height": 200, "fit": "inside" }
}

Category	Capabilities
`image`	`resize`, `crop`, `rotate`, `convert_format`, `composite`, `add_padding`, `flatten`, `add_alpha_channel`, `pipeline`
`video`	`transcode`, `trim`, `concat`, `scale`, `crop`, `watermark`, `extract_frame`, `extract_audio`, `add_audio`, `pipeline`
`audio`	`transcode`, `trim`, `concat`, `pipeline`
`document`	`extract_text`, `convert_format`, `render_slides`
`archive`	`pack`, `unpack`
`web`	`search`
`code`	`run_python`, `run_node`

A capability’s inputs are split across input and params, and which one holds a URL varies: image.composite takes params.overlay_url, and archive.pack takes params.entries[].sourceUrl with an empty input. Bindings resolve in params exactly as they do in input. Read the capability’s own schema from GET /v1/tools rather than guessing. The three composite capabilities — image.pipeline, video.pipeline, audio.pipeline — chain operations inside a single step. params.operations holds 1 to 10 entries; the ceiling is published as maxItems on the capability’s params_schema.

`http`

Call an external API. This is the only step type where ${secrets.…} resolves; a secret reference in any other step’s input is refused at write time.

{
  "id": "fetch",
  "type": "http",
  "input": {
    "url": "https://api.example.com/v1/items",
    "method": "POST",
    "headers": { "Authorization": "Bearer ${secrets.example_token}" },
    "body": { "query": "${input.term}" },
    "expect_status": [200]
  }
}

Field	Default	Notes
`url`	—	Required. `http://` or `https://`, or a binding.
`method`	`GET`	`GET`, `POST`, `PUT`, `PATCH`, `DELETE`, `HEAD`.
`headers`	—	String to string.
`query`	—	String, number or boolean values.
`body`	—	Any JSON value.
`body_type`	`json`	`json`, `form` or `text`.
`timeout_seconds`	`30`	1–60.
`follow_redirects`	`true`
`max_redirects`	`3`	0–5.
`expect_status`	—	Any other status fails the step.
`extract_text`	`false`	Convert an HTML response to readable text before it becomes `output.body`.
`max_chars`	—	Hard ceiling on the characters kept in `output.body`, applied after `extract_text`.

Output: { "status": …, "headers": {…}, "body": …, "duration_ms": …, "truncated": … }. A JSON content type is parsed; text/* and form-encoded bodies arrive as a string; anything else fails the step with unsupported_response_type. An http step costs 1 credit, whatever it fetches.

Responses are capped at 5 MB — larger ones fail with response_too_large. That cap is about memory, not about context windows: a 2 MB article page is mostly markup and can still blow a model’s context window when bound into a prompt. Use extract_text and max_chars before feeding a page to a model.

Requests to private, internal or link-local addresses are refused with ssrf_blocked. Secret values are redacted from logs and from any error snippet.

`sub_pipeline`

Invoke another stored workflow once, as a step.

{
  "id": "thumbnail",
  "type": "sub_pipeline",
  "pipeline_id": "0d5f0f4d-6f5d-4e6b-9d0a-6c9a2f7e1b33",
  "pipeline_version": 3,
  "inputs": { "source": "${steps.hero.outputRef}" }
}

pipeline_version is required — there is no implicit “latest” — so a published parent cannot silently change behaviour when the child is revised. Output: the child workflow’s own output object, passed straight through. The step publishes no artifact handle of its own. Chains are limited to a depth of 3, enforced at run time. A cycle between workflows is refused when the definition is saved, and when an inline definition is passed to /v1/workflows/estimate.
