Workflows

A workflow is a JSON definition of steps that run on our side. One request in, one result out — the intermediate calls, the artifacts they produce and the money they cost never leave our infrastructure. Compared with orchestrating the same work yourself from a single /v1/chat/completions call at a time, a workflow gives you:

One round trip. A ten-step workflow is one HTTP request, not ten.
Bindings. A step reads an earlier step’s output by path — no glue code.
Artifacts that stay put. An image a step generates is re-hosted in your workspace and handed to the next step by reference, never re-uploaded by you.
A cost estimate before you run it. POST /v1/workflows/estimate prices a definition without executing it.

Workflows are authored as JSON through the API, or visually in the workflow editor at app.infery.ai. Both write the same definition; everything on these pages applies to either.

Creating one

In the dashboard, + above the workflow list offers two starting points.

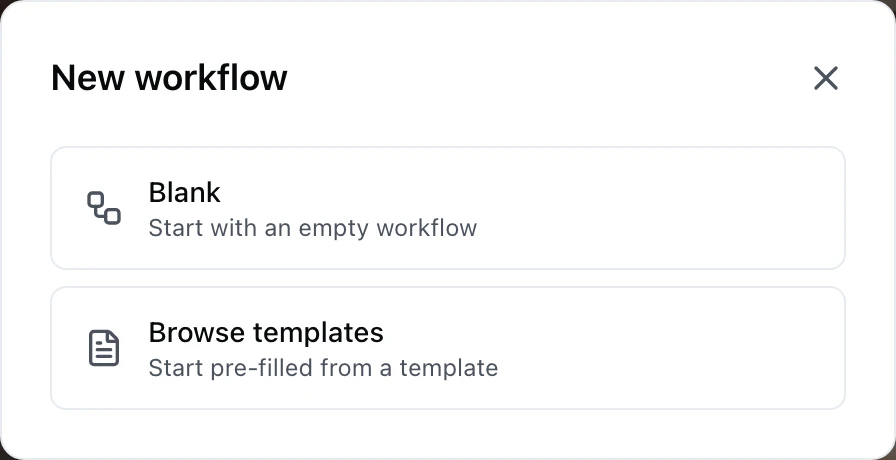

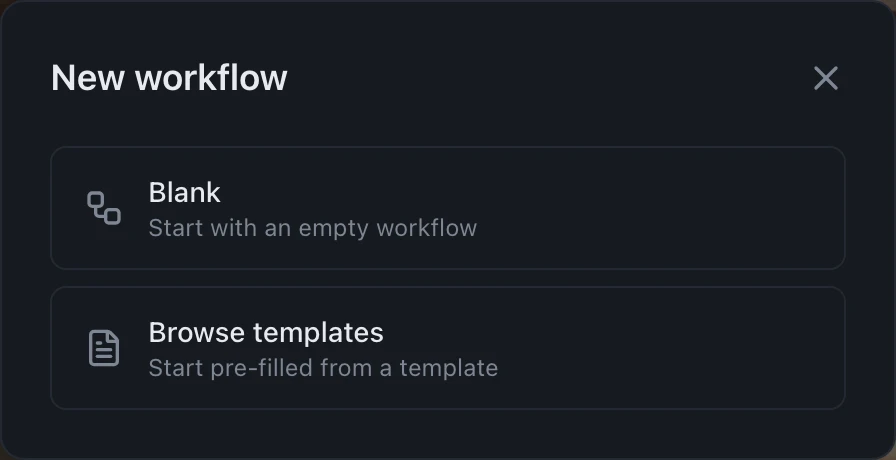

A dialog headed New workflow with two options: Blank, start with an empty workflow, and Browse templates, start pre-filled from a template. — The two ways to start

Blank gives you an empty canvas — no steps, no output card yet. You name it and start adding steps; an output card appears once you run it, already wired to whatever step is left with nothing reading it. Browse templates opens a gallery of working workflows you can copy.

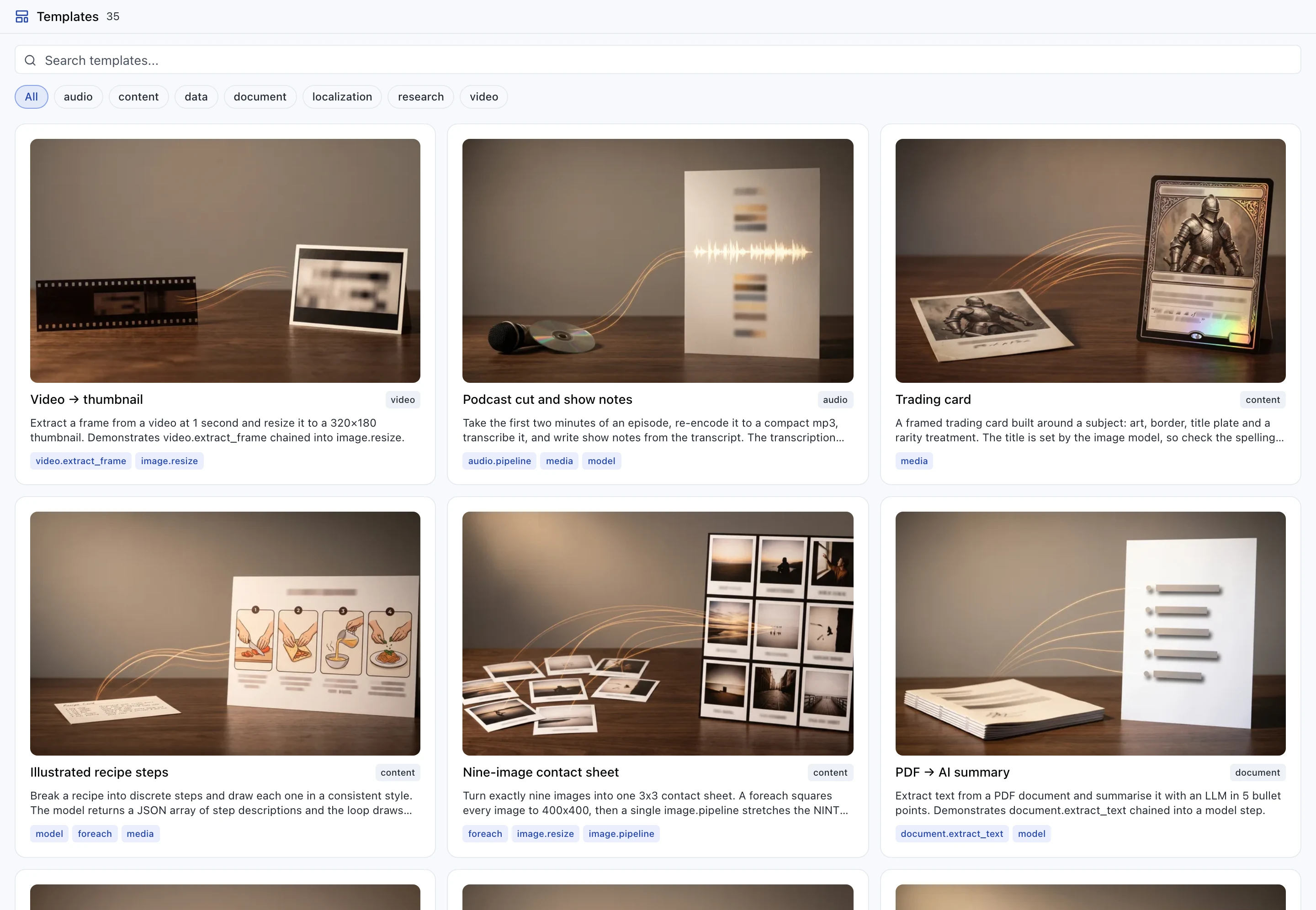

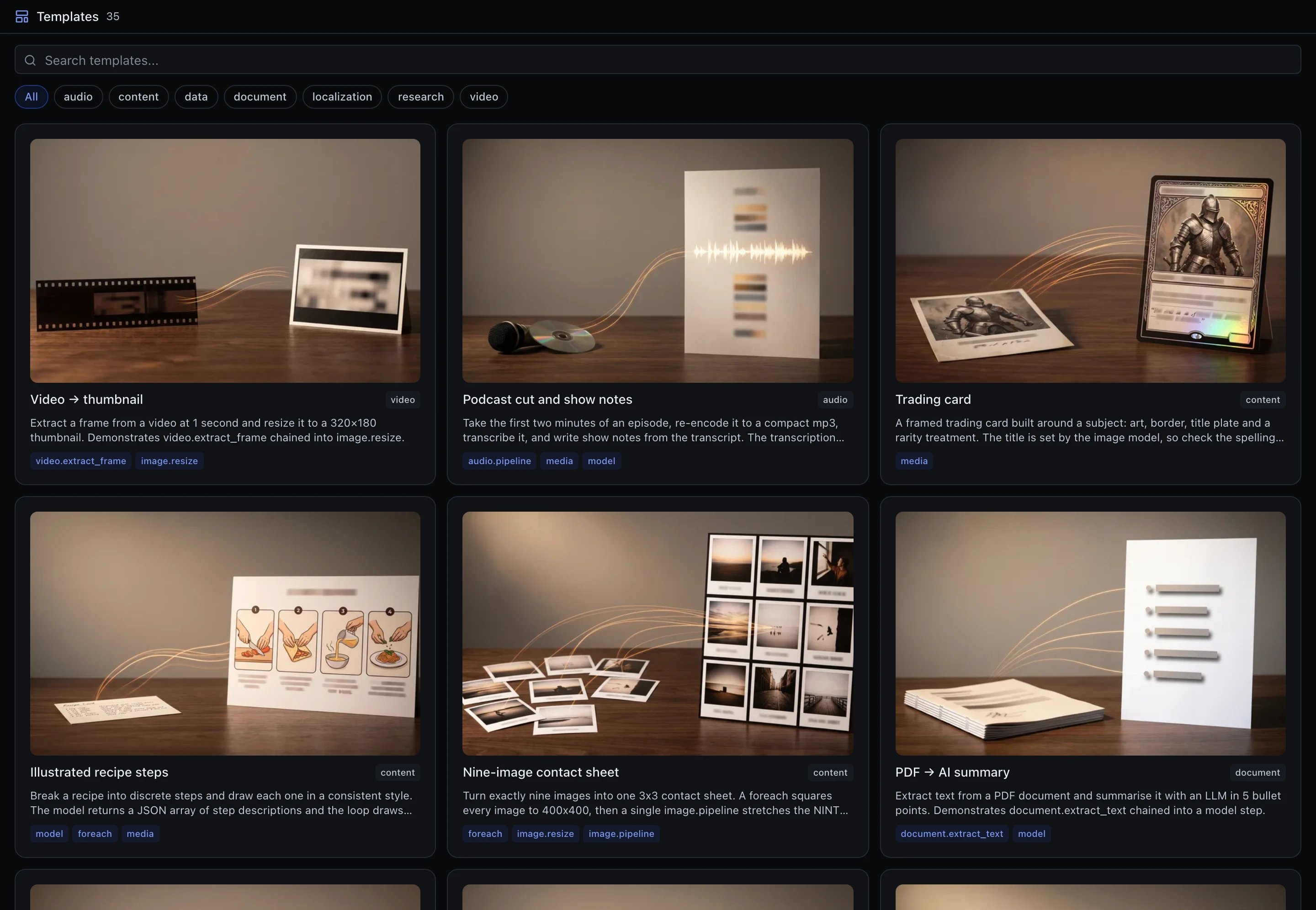

A gallery of 35 template cards under category chips reading All, audio, content, data, document, localization, research and video. Visible cards: Video to thumbnail, Podcast cut and show notes, Trading card, Illustrated recipe steps, Nine-image contact sheet, and PDF to AI summary. Each card carries a description and small tags naming the step types it uses, such as model, foreach, media and document.extract_text. — The template gallery: each card names the step types it uses

The tags under each card are the step types the template uses — web.search, model, foreach, code.run_python. They are the fastest way to find a worked example of a step you have not used before: pick the template that carries the tag, open it, and read what it does with it. A template is copied into your workspace, not linked. Editing your copy changes nothing for anyone else, and the template does not change under you later. Through the API, the same thing is POST /v1/workflows — and GET /v1/workflows/templates lists the same catalogue, with sample_input you can run a template with unchanged.

A minimal workflow

{
  "inputs": [
    { "name": "topic", "type": "text" }
  ],
  "steps": [
    {
      "id": "outline",
      "type": "model",
      "model": "gpt-5",
      "input": {
        "messages": [
          { "role": "user", "content": "Write a three-bullet outline about ${input.topic}." }
        ]
      }
    },
    {
      "id": "post",
      "type": "model",
      "model": "gpt-5",
      "input": {
        "messages": [
          { "role": "user", "content": "Expand this outline into a short post:\n${steps.outline.output.choices.0.message.content}" }
        ]
      }
    }
  ],
  "output": {
    "post": "${steps.post.output.choices.0.message.content}"
  }
}

Run it inline, without storing it:

curl

curl https://api.infery.ai/v1/workflows/runs \
  -H "Authorization: Bearer $INFERY_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "definition": { "...": "the JSON above" },
    "input": { "topic": "cold brew" }
  }'

The parts of a definition

Key	Required	What it is
`steps`	yes	An array of at least one step. See Step types.
`inputs`	no	Declarations for the run inputs the definition references. Required in practice — see below.
`output`	no	A map of result names to binding expressions. Absent, the run returns `{"result": <last step's output>}`.
`failure_mode`	no	`fail_fast` (default) or `continue`.
`concurrency`	no	How many top-level steps may run at once. Integer 1–20, default 5. `1` runs the workflow strictly one step at a time.
`retry`	no	Workflow-level retry policy — see Step types.
`pipeline_timeout_seconds`	refused	Not a real setting. It was accepted once but never enforced, so the write-time schema now rejects it outright, whatever value you send — remove it and bound a run with per-step `timeout_seconds` instead.
`ui`	no	Canvas layout the workflow editor writes. Nothing on the run path reads it.

The definition object is strict: an unrecognised top-level key is refused, not ignored.

Declaring run inputs

Every ${input.X} reachable from the executable part of a definition must appear in inputs, or the save is refused naming the ones that do not:

{
  "inputs": [
    { "name": "topic", "type": "text", "label": "Topic" },
    { "name": "tone", "type": "text", "required": false, "default": "neutral" },
    { "name": "photo", "type": "image" }
  ]
}

Field	Notes
`name`	Letters, digits, `_` and `-` only; up to 120 characters. Unique within the list.
`type`	One of `text`, `number`, `boolean`, `json`, `image`, `video`, `audio`, `file`.
`required`	Defaults to true when absent.
`default`	Only allowed when `required` is `false`. Injected into a run that omits the input.
`label`, `description`	Presentational. Up to 120 and 300 characters.

A definition may declare at most 50 inputs. The media types (image, video, audio, file) carry a URL or a workspace file id — both plain strings.

How outputs flow

Each step publishes its result under its own id. A later step names it with a binding:

${steps.<stepId>.output.<path>}

The shape under output is whatever that step type produces — an OpenAI chat.completion object for a model step, {url, file_id, modality, …} for a media step, {status, headers, body, …} for an http step. Step types lists each one. Top-level steps are ordered by their dependencies, not by the order you wrote them, so a step may reference one declared after it. That is not true inside a foreach body or a parallel branch — see Containers.

Independent steps run at the same time

A top-level step starts as soon as every step it reads has finished. Two steps that read nothing from each other therefore overlap, up to the concurrency ceiling (default 5). You do not need a parallel step to get this.

{
  "steps": [
    { "id": "clip",   "type": "media", "capability": "video.generate", "input": { "prompt": "${input.scene}" } },
    { "id": "music",  "type": "media", "capability": "audio.generate", "input": { "prompt": "${input.mood}" } },
    { "id": "scored", "type": "media", "capability": "video.add_audio",
      "input": { "video_url": "${steps.clip.outputRef}", "audio_url": "${steps.music.outputRef}" } }
  ]
}

clip and music run together; scored waits for both.

fail_fast stops what has not started — it cannot stop what has. When a step fails, no further step is dispatched, but a step already sent to a provider runs to completion and is billed. Its credits are included in the run’s creditsUsed and its verdict in stepRuns; nothing is refunded. The run reports failed once the steps that were already running have finished.Set "concurrency": 1 if you need a run where a failure can cost nothing beyond the step that failed.

Where to go next

Bindings

The ${…} grammar: paths, projections, fallbacks, artifact references.

Step types

model, media, three_d, http, sub_pipeline and the 31 capabilities.

Containers

foreach and parallel — scope, ordering and limits.

Running a workflow

Sync, stream and async modes, plus cost estimates.
